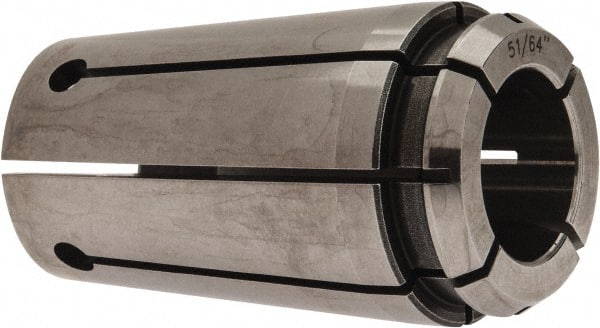

Accupro - TG/PG 100 51/64" Standard Single Angle Collet - 0.02mm TIR, 60.14mm OAL, 34.26mm Overall Diam
Item #: 00332668
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Standard |
| Collet Series | TG/PG 100 |
| Size (Inch) | 51/64 |
| Size (Decimal Inch) | 0.7969 |
| TIR (mm) | 0.0200 |
| TIR (Decimal Inch) | 0.000780 |
| Overall Length (mm) | 60.14 |
| Overall Length (Decimal Inch) | 2.3860 |
| Overall Diameter (mm) | 34.26 |
| Overall Diameter (Decimal Inch) | 1.2780 |
| PSC Code | 5136 |
