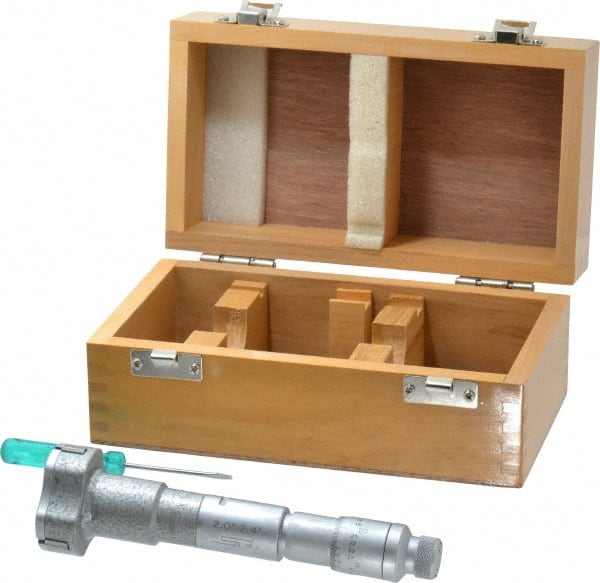

SPI - 2 to 2.4", 3.54" Gage Depth, Mechanical Inside Hole Micrometer - 0.0002" Graduation, 0.00025" Accuracy, Ratchet Stop Thimble
Item #: 00342923
Brand: SPI
Exact Tooling IR#: 04
Features and Benefits
Ratchet stop thimbles offer audible feedback and constant measuring pressure on the spindle while measuring. They cause micro-shocks and requires two hands to make a measurement.
| Product Specifications | |
|---|---|
| Type | Hole |
| Minimum Measurement (Decimal Inch) | 2.0000 |
| Maximum Measurement (Decimal Inch) | 2.4000 |
| Graduation (Decimal Inch) | 0.0002 |
| Thimble Type | Ratchet Stop |
| Accuracy (Decimal Inch) | 0.000250 |
| Gage Depth (Decimal Inch) | 3.5400 |
| Maximum Extension Rod Length (Inch) | 6 |
| Number of Contact Points | 3 |
| Number of Setting Rings Included | 0 |
| Setting Ring Diameter (Decimal Inch) | 2.0000 |
| Digital Counter | No |
