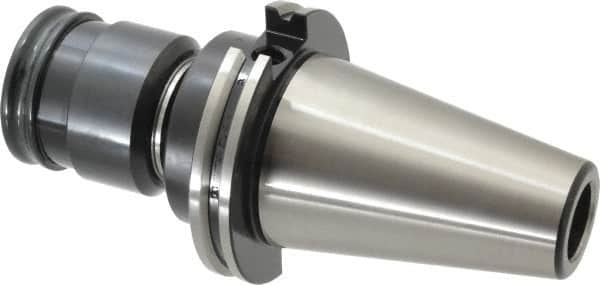

Parlec - CAT50 Taper Shank Tension & Compression Tapping Chuck - #6 to 1-5/8" Tap Capacity, 4.04" Projection
Item #: 00363044
Brand: Parlec
Model #: C50-77TA4
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Minimum Tap Capacity (mm) | M3.5 |
| Minimum Tap Capacity (Inch) | #6 |
| Maximum Tap Capacity (Inch) | 1-5/8 |
| Maximum Tap Capacity (mm) | M36 |
| Projection (Decimal Inch) | 4.0400 |
| Quick Change | No |
| Nose Diameter (Decimal Inch) | 2.3100 |
| Tension (Decimal Inch) | 0.5600 |
| Compression (Decimal Inch) | 0.00 to 0.25 |
| Through Coolant | No |
