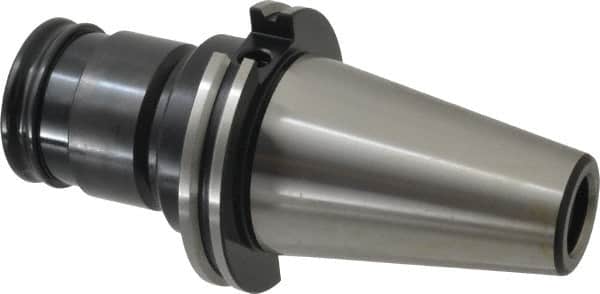

Parlec - CAT50 Taper Shank Rigid Tapping Adapter - #6 to 1-5/8" Tap Capacity, 3-3/4" Projection, Quick Change, Through Coolant
Item #: 00363317
Brand: Parlec
Model #: C50-77TR4C
Exact Tooling IR#: 04
Features and Benefits
Rigid or solid tapping styles are used for general purpose CNC machining. The rigid tapping cycle synchronizes the machine and spindle rotation to match a specific thread pitch. It is used at higher speeds, but does not compensate for length during the taping cycle.
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Rigid |
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Minimum Tap Capacity (mm) | M5 |
| Minimum Tap Capacity (Inch) | #6 |
| Maximum Tap Capacity (Inch) | 1-5/8 |
| Maximum Tap Capacity (mm) | M33 |
| Projection (Decimal Inch) | 3.7500 |
| Quick Change | Yes |
| Nose Diameter (Decimal Inch) | 2.3100 |
| Through Coolant | Yes |
