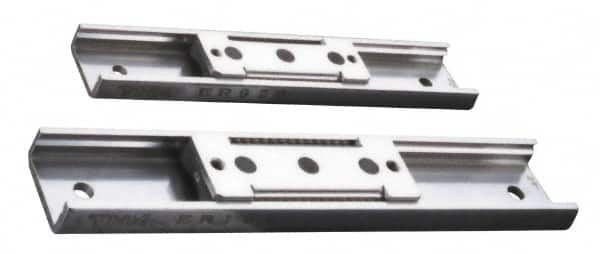

THK - 22mm Block L x 0.5mm H, 7mm Lateral Hole Spcg, Linear Pack ER Assembly - M2x1.3 Block Hole, 80mm Rail L x 13mm W x 4mm H, 4.5mm Assembly H
Item #: 00373035
Brand: THK
Model #: ER513+80L
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Linear Pack Type ER |
| Block Length (mm) | 22.00 |
| Block Height (mm) | 0.50 |
| Block Lateral Hole Spacing (mm) | 7.00 |
| Block Hole Size | M2x1.3 |
| Rail Length (mm) | 80.00 |
| Rail Width (mm) | 13.000 |
| Rail Height (mm) | 4.000 |
| Assembly Height (mm) | 4.50 |
| Rail Bolt Spacing (mm) | 20.00 |
| Rail Hole Size | 2.4 |
| Static Load Rating (kN) | 0.070 |
| Dynamic Load Capacity (kN) | 0.056 |
