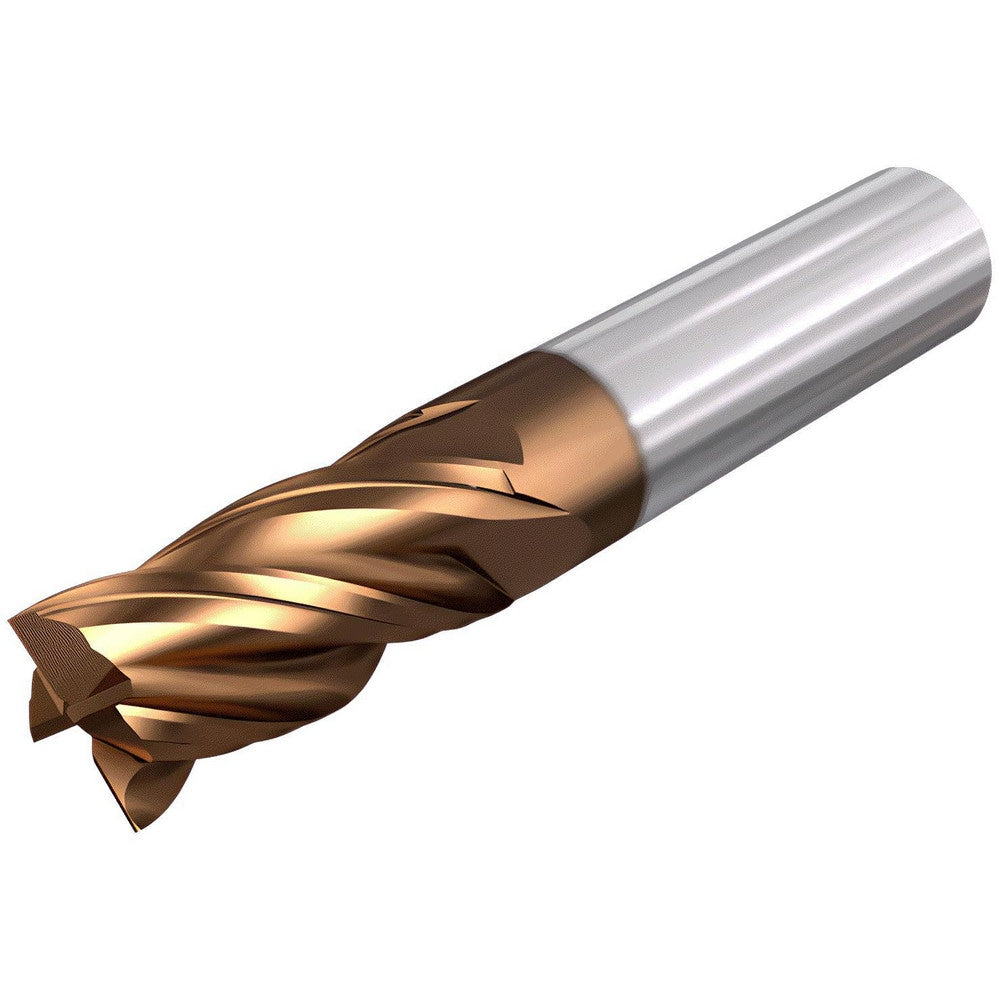

Corner Radius End Mill: 1/2" Dia, 5/8" LOC, 0.0600" Radius, 4 Flute, Solid Carbide
Item #: 20557815
Brand: Iscar
Model #: 3401158
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 5/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiCrSiN |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0600 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 2.5 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2598 |
| Length Type | Short |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Type | Weldon Flat |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Reach Length (Decimal Inch) | 0.6250 |
| Reach Length (Inch) | 5/8 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; H; K; M |
| Material Grade | Submicron |
| Series | ECI-4-VF |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Manufacturers Catalog Number | ECI-4 500-625W06VF2.5 |
