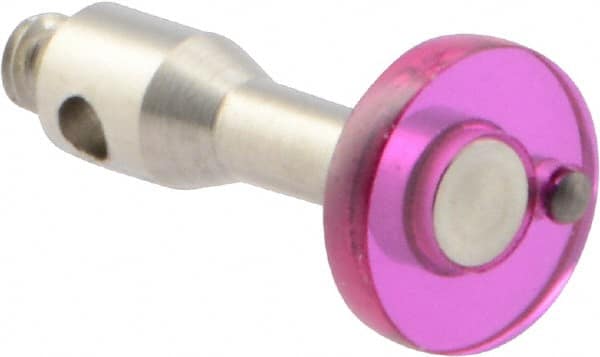

Renishaw - 0.24 Inch Ball Diameter, Stainless Steel Stem, M2 Thread, Ruby Point Disc Tip CMM Stylus - 1.2 mm Working Length, 0.0787 Inch Stem Diameter, 10 mm Overall Length
Item #: 00551713
Brand: Renishaw
Model #: A-5000-3611
Exact Tooling IR#: 04
Features and Benefits
The stylus is the spherical portion or tip of the probe that makes contact with the workpiece surface. It is commonly made of a synthetic ruby and mounted on a stem.
Disc type stylus' are used for probing undercuts and grooves. They are commony used for probing X and Y axis.
| Product Specifications | |
|---|---|
| Stylus or Probe | Stylus |
| Stylus Type | Disc |
| Stylus Thread Size | M2 |
| Point Material | Ruby |
| Ball Diameter (mm) | 6.00 |
| Ball Diameter (Decimal Inch) | 0.2400 |
| Overall Length (mm) | 10.00 |
| Stem Material | Stainless Steel |
| Stem Diameter (mm) | 2.00 |
| Stem Diameter (Decimal Inch) | 0.0787 |
| Effective Working Length (mm) | 1.20 |
