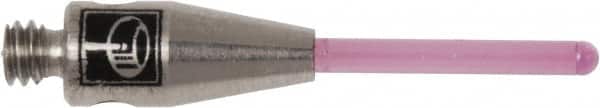

Renishaw - 0.0394 Inch Ball Diameter, Stainless Steel Stem, M2 Thread, Ruby Point Ball Tip CMM Stylus - 0.315 Inch Working Length, 0.5906 Inch Overall Length
Item #: 00552208
Brand: Renishaw
Model #: A-5000-8876
Exact Tooling IR#: 04
Features and Benefits
The stylus is the spherical portion or tip of the probe that makes contact with the workpiece surface. It is commonly made of a synthetic ruby and mounted on a stem.
Ball styles are the most commonly used and probe X, Y and Z axis.
| Product Specifications | |
|---|---|
| Stylus or Probe | Stylus |
| Stylus Type | Ball |
| Stylus Thread Size | M2 |
| Point Material | Ruby |
| Ball Diameter (mm) | 1.00 |
| Ball Diameter (Decimal Inch) | 0.0394 |
| Overall Length (mm) | 15.00 |
| Overall Length (Decimal Inch) | 0.5906 |
| Stem Material | Stainless Steel |
| Effective Working Length (mm) | 8.00 |
| Effective Working Length (Decimal Inch) | 0.3150 |
