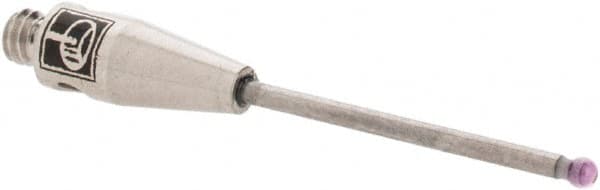

Renishaw - 0.0394 Inch Ball Diameter, Carbide Stem, M2 Thread, Ruby Point Ball Tip CMM Stylus - 1/2 Inch Working Length, 0.04 Inch Stem Diameter, 0.7874 Inch Overall Length
Item #: 00552224
Brand: Renishaw
Model #: A-5003-0033
Exact Tooling IR#: 04
Features and Benefits
The stylus is the spherical portion or tip of the probe that makes contact with the workpiece surface. It is commonly made of a synthetic ruby and mounted on a stem.
Ball styles are the most commonly used and probe X, Y and Z axis.
| Product Specifications | |
|---|---|
| Stylus or Probe | Stylus |
| Stylus Type | Ball |
| Stylus Thread Size | M2 |
| Point Material | Ruby |
| Ball Diameter (mm) | 1.00 |
| Ball Diameter (Decimal Inch) | 0.0394 |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Stem Material | Carbide |
| Stem Diameter (mm) | 1.02 |
| Stem Diameter (Decimal Inch) | 0.0400 |
| Effective Working Length (mm) | 12.70 |
| Effective Working Length (Decimal Inch) | 0.5000 |
