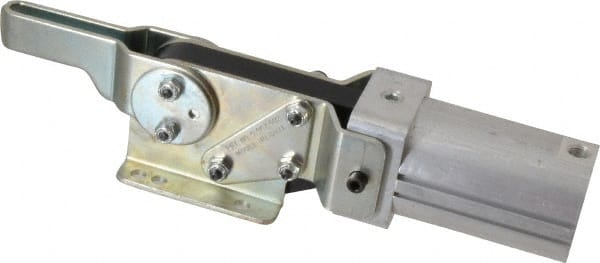

De-Sta-Co - 450 Lb Inner Hold Capacity, Horiz Mount, Air Power Hold-Down Toggle Clamp - 1/8 NPT Port, 145 Max psi, 90° Bar Opening, 41.91mm Height Under Bar
Item #: 00579656
Brand: De-Sta-Co
Model #: 8071
Exact Tooling IR#: 04
Features and Benefits
Horizontal mounts indicate that the cylinder is mounted parallel to the clamping bar's closed position.
| Product Specifications | |
|---|---|
| Power Type | Pneumatic |
| Mounting Orientation | Horizontal |
| Holding Capacity - Inner (N) | 2000 |
| Holding Capacity - Inner (Lb.) | 450 |
| Height Under Bar (mm) | 41.91 |
| Height Under Bar (Decimal Inch) | 1.65 |
| Port Size | 1/8 NPT |
| Bar Opening (Degrees) | 90 |
| Length Distance Between Mount Holes (mm) | 50.04 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.9700 |
| Width Distance Between Mount Holes (mm) | 39.62 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.5600 |
| Clamping Force - Inner (N) | 2218 |
| Clamping Force - Inner (Lb.) | 496 |
| Bar Extension (Decimal Inch) | 1.4000 |
| Bar Extension (mm) | 35.56 |
| Overall Open Length (mm) | 203.90 |
| Overall Open Length (Decimal Inch) | 8.02 |
| Overall Closed Length (mm) | 272.90 |
| Overall Closed Length (Decimal Inch) | 10.74 |
| Overall Open Height (Decimal Inch) | 5.12 |
| Overall Open Height (mm) | 130.00 |
| Overall Closed Height (mm) | 66.90 |
| Overall Closed Height (Decimal Inch) | 2.63 |
| Outer Load Capacity (N) | 1380 |
| Outer Clamping Force (N) | 1267 |
| Outer Clamping Force (Lb.) | 283 |
| Maximum Air Pressure (psig) | 145.00 |
| Maximum Air Pressure (bar) | 10.00 |
| Mounting Hole Size (mm) | 7.11 |
| Mounting Hole Size (Decimal Inch) | 0.2800 |
| Bar Style | Solid |
| Bar End Type | Open |
| Maximum Mechanical Advantage | 2.4:1; 4.2:1 |
| Sensor Compatibility | Round; T-Slot |
| Cylinder Bore Size (mm) | 39.88 |
| Cylinder Bore Size (Decimal Inch) | 1.5700 |
| Spindle Thread Size | 5/16; M8 |
| Maximum Operating Temperature (C) | 90.00 |
| Maximum Operating Temperature (F) | 194.00 |
| Minimum Operating Temperature (F) | 14.00 |
| Minimum Operating Temperature (C) | -10.00 |
| Includes | Bolt Retainer |
