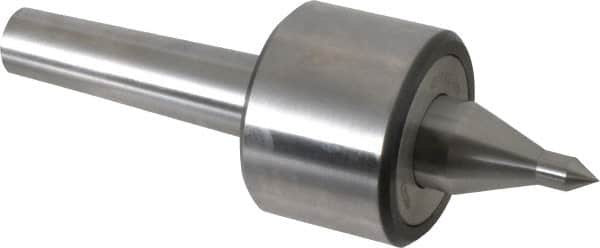

Riten - MT3 Taper Shank, 2-3/8" Head Diam 4,480 Lb Capacity Live Center - 4,000 Max RPM, 1-3/4" Head Length, 3/8" Point Diam, 1-7/8" Point Len, 310 Lb Max Workpc, 7-1/16" OAL, 5/8" Long Tip, Long Point
Item #: 00620591
Brand: Riten
Model #: 48103
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 310.00 |
| Point Style | Long |
| Point Diameter (Inch) | 3/8 |
| Point Diameter (Decimal Inch) | 0.3750 |
| Point Length (Inch) | 1-7/8 |
| Accuracy (Decimal Inch) | 0.000000 |
| Tip Length (Inch) | 5/8 |
| Load Capacity (Lb.) | 4480.00 |
| Head Diameter (Inch) | 2-3/8 |
| Head Length (Inch) | 1-3/4 |
| Taper Length (Inch) | 3-3/16 |
| Overall Length (Decimal Inch) | 7.0630 |
| Point to Gauge Line (Decimal Inch) | 3.8750 |
| Gage Line Clearance (Inch) | 1/4 |
| Included Angle | 60.00 |
| Bearing Type | Double Bearing |
| Maximum RPM | 4000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
