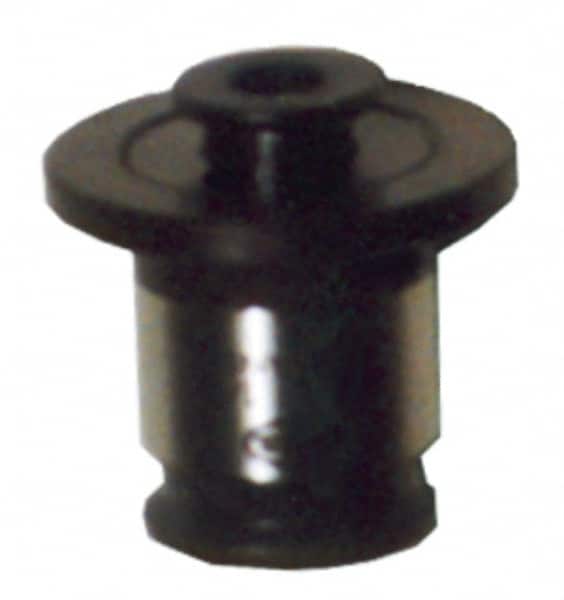

Bilz - 0.433" Tap Shank Diam, 0.354" Tap Square Size, M14 Tap, #3 Tapping Adapter - 0.5512" Projection, 1.732" Tap Depth, 2.7362" OAL, 1.89" Shank OD, Through Coolant, Series WE 3
Item #: 00629311
Brand: Bilz
Model #: 23100004
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tap Size (mm) | M14 |
| Adapter Size | 3 |
| Tap Shank Diameter (mm) | 11.00 |
| Tap Shank Diameter (Decimal Inch) | 0.4330 |
| Tap Square Size (mm) | 8.99 |
| Tap Square Size (Decimal Inch) | 0.3540 |
| Quick Change | Yes |
| Projection (mm) | 14.00 |
| Projection (Decimal Inch) | 0.5512 |
| Tap Depth (mm) | 43.99 |
| Tap Depth (Decimal Inch) | 1.7320 |
| Series | WE 3 |
| Overall Length (mm) | 69.50 |
| Overall Length (Decimal Inch) | 2.7362 |
| Flange Diameter (mm) | 70.00 |
| Flange Diameter (Decimal Inch) | 2.7560 |
| Outside Shank Diameter (mm) | 48.01 |
| Outside Shank Diameter (Decimal Inch) | 1.8900 |
| Through Coolant | Yes |
| DIN Standard | DIN 376 |
| PSC Code | 5136 |
