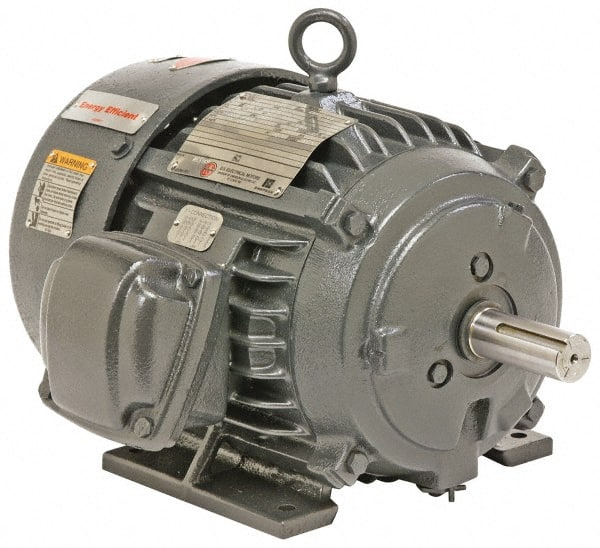

US Motors - 1/2 hp, Auto Thermal Protection, 1,725 RPM, 208-230/460 Volt, Three Phase Motor - Size 56 Frame, 2.2-2.2/1.1 Full Load Amps, B Class Insulation
Item #: 00643171
Brand: US Motors
Model #: XS12SA2D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase |
| Horsepower | 1/2 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1725 |
| Voltage | 208-230/460 |
| Frame Size | 56 |
| Applications | Hazardous Location |
| Full Load Amperage | 2.2-2.2/1.1 |
| Insulation Class | B |
| Frame Material | Steel |
| Full Load Efficiency Rating | 2.2-2.2/1.1 |
| Service Factor Rating | 1.00 |
| PSC Code | 6105 |
