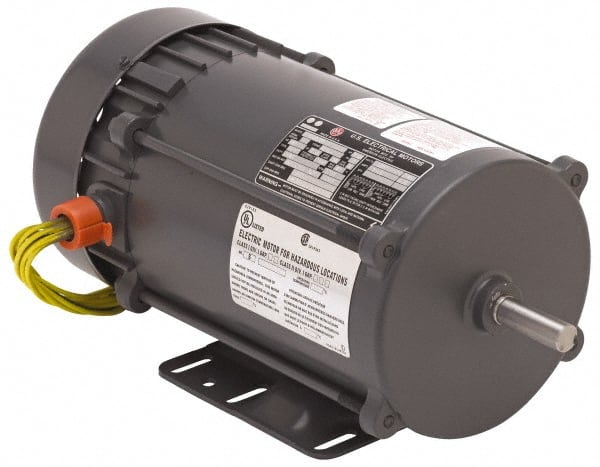

US Motors - 1 hp, Auto Thermal Protection, 3,450 RPM, 115/208-230 Volt, Single Phase Motor - Size 56 Frame, C-Face with Base & C-Face without Base Mount, Ball Bearings, 12.0/6.0-6.0 Full Load Amps, B Class Insulation
Item #: 00643304
Brand: US Motors
Model #: XS1CA1J
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Phase |
| Horsepower | 1 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 3450 |
| Voltage | 115/208-230 |
| Frame Size | 56 |
| Mount Type | C-Face w/Base & C-Face w/o Base |
| Bearing Type | Ball |
| Applications | Hazardous Location |
| Full Load Amperage | 12.0/6.0-6.0 |
| Insulation Class | B |
| Full Load Efficiency Rating | 12.0/6.0-6.0 |
| Service Factor Rating | 1.00 |
| PSC Code | 6105 |
