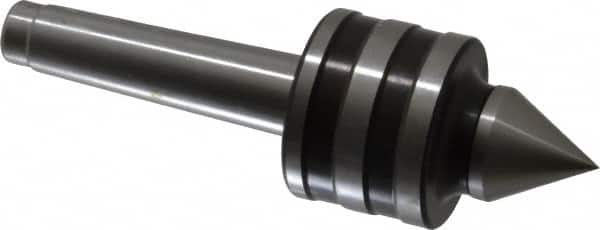

Value Collection - MT2 Taper Shank Shank, 41mm Head Diam, Live Center - 5,000 Max RPM, 24mm Point Diam, 2.22" Point Len, 463 Lb Max Workpc, Standard Point
Item #: 00654517
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT2 |
| Maximum Workpiece Weight (Lb.) | 462.97 |
| Point Style | Standard |
| Point Diameter (mm) | 24.00 |
| Point Diameter (Decimal Inch) | 0.9449 |
| Point Length (Decimal Inch) | 2.2200 |
| Accuracy (mm) | 0.0100 |
| Tip Length (Decimal Inch) | 1.2100 |
| Head Diameter (mm) | 41.00 |
| Head Diameter (Decimal Inch) | 1.6142 |
| Overall Length (mm) | 130.00 |
| Overall Length (Decimal Inch) | 5.1181 |
| Gage Line Diameter (mm) | 18.00 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 5000 |
| Material | Hardened Steel |
| Carbide-Tipped | No |
