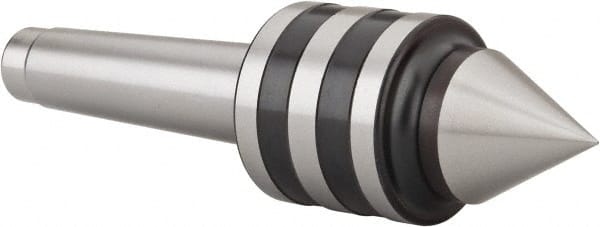

Value Collection - MT3 Taper Shank, 1.7717" Head Diam Live Center - 4,000 Max RPM, 1.2598" Point Diam, 2.95" Point Len, 705.48 Lb Max Workpc, 6.4567" OAL, 1.12" Long Tip, Standard Point
Item #: 00654525
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 705.48 |
| Point Style | Standard |
| Point Diameter (mm) | 32.00 |
| Point Diameter (Decimal Inch) | 1.2598 |
| Point Length (Decimal Inch) | 2.9500 |
| Accuracy (mm) | 0.0100 |
| Tip Length (Decimal Inch) | 1.1200 |
| Head Diameter (mm) | 45.00 |
| Head Diameter (Decimal Inch) | 1.7717 |
| Overall Length (mm) | 164.00 |
| Overall Length (Decimal Inch) | 6.4567 |
| Gage Line Diameter (mm) | 24.10 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 4000 |
| Material | Hardened Steel |
| Carbide-Tipped | No |
