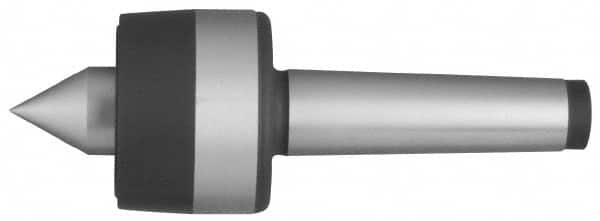

Value Collection - MT4 Taper Shank Shank, 52mm Head Diam, Live Center - 3,000 Max RPM, 33mm Point Diam, 3.21" Point Len, 1,323 Lb Max Workpc, Standard Point
Item #: 00654533
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 1322.80 |
| Point Style | Standard |
| Point Diameter (mm) | 33.00 |
| Point Diameter (Decimal Inch) | 1.2992 |
| Point Length (Decimal Inch) | 3.2100 |
| Accuracy (mm) | 0.0100 |
| Tip Length (Decimal Inch) | 1.2400 |
| Head Diameter (mm) | 52.00 |
| Head Diameter (Decimal Inch) | 2.0472 |
| Overall Length (mm) | 192.00 |
| Overall Length (Decimal Inch) | 7.5591 |
| Gage Line Diameter (mm) | 31.60 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 3000 |
| Material | Hardened Steel |
| Carbide-Tipped | No |
