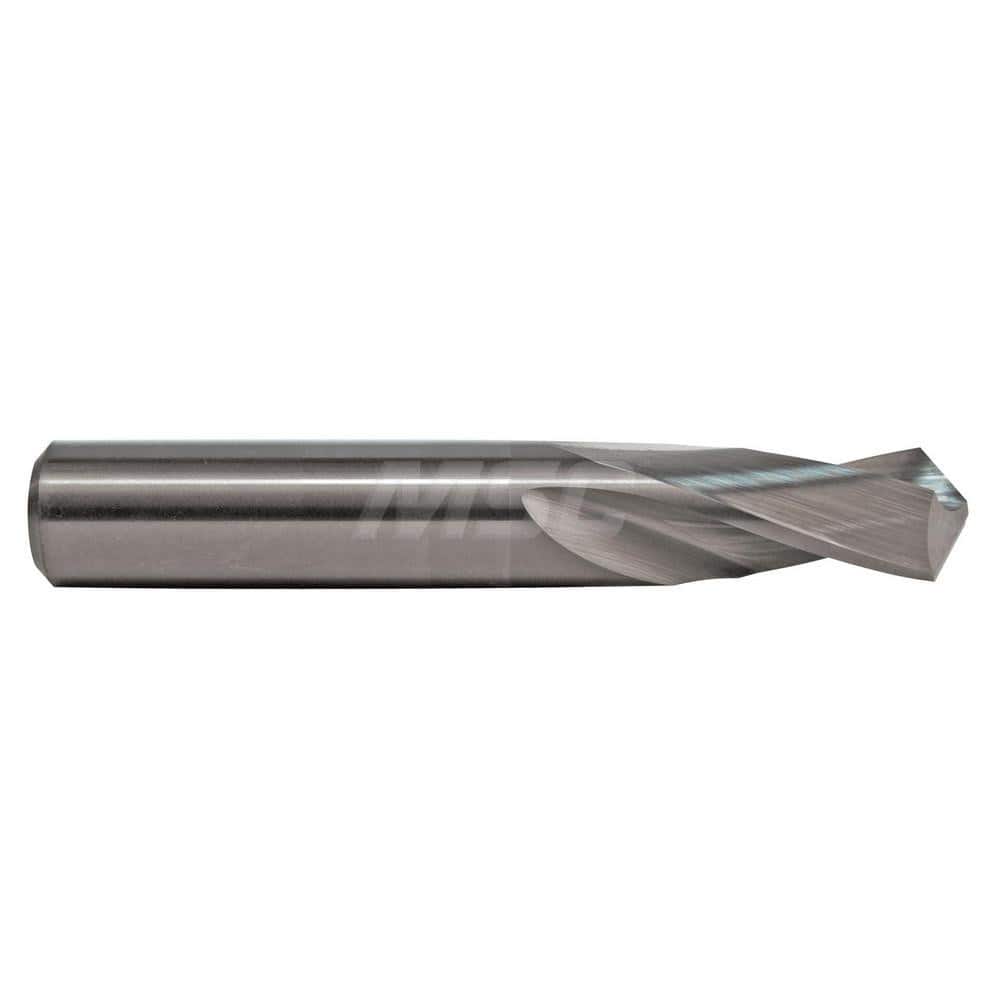

Screw Machine Length Drill Bit: 0.082″ Dia, 118 °, Solid Carbide Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 206
Item #: 00654996
Brand: M.A. Ford?
Model #: 20608200
Product Specifications
| Drill Bit Size (Wire) | #45 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Faceted |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.0820 |
| Drill Bit Size (Decimal Inch) | 0.0820 |
| Overall Length (Inch) | 1-1/2 |
| Series | 206 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Length Type | Short |
| Shank Length (Inch) | 1 |
| Shank Length (Decimal Inch) | 1.0000 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Flute Length (Inch) | 1/2 |
| Drill Bit Size Range (Decimal Inch) | 0.0000 to 0.1000 |
