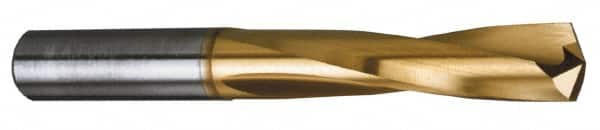

M.A. Ford - 9.99998mm 135° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 00658039
Brand: M.A. Ford
Model #: 20539370T
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.3937 |
| Drill Bit Size (mm) | 10.00 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 49.00 |
| Overall Length (mm) | 84.00 |
| Point Type | Split Point |
| Spiral Type | Slow Spiral |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.013 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0005 |
| Web Thinning | Web-Thinned |
| Series/List | 205 |
