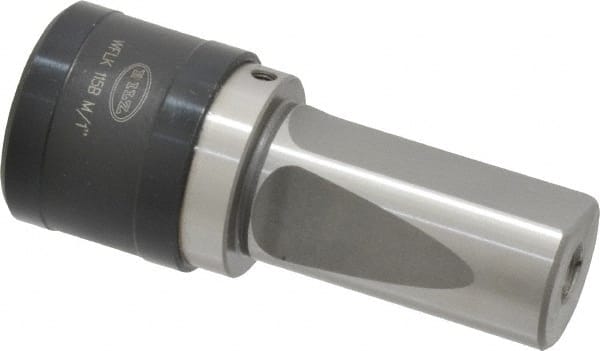

Bilz - 1" Straight Shank Diam Tension & Compression Tapping Chuck - #0 to 9/16" Tap Capacity, 40mm Projection, Size 1 Adapter, Quick Change
Item #: 00669341
Brand: Bilz
Model #: 12018298
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Minimum Tap Capacity (mm) | M3 |
| Minimum Tap Capacity (Inch) | #0 |
| Maximum Tap Capacity (Inch) | 9/16 |
| Maximum Tap Capacity (mm) | M12 |
| Projection (Decimal Inch) | 1.5748 |
| Projection (mm) | 40.00 |
| Quick Change | Yes |
| Minimum Collet Capacity (Inch) | #0 |
| Maximum Collet Capacity (Inch) | 9/16 |
| Hole Diameter (mm) | 19.00 |
| Adapter Size | 1 |
| Nose Diameter (mm) | 36.00 |
| Tap Depth (Decimal Inch) | 1.5800 |
| Overall Length (mm) | 90.80 |
| Through Coolant | No |
