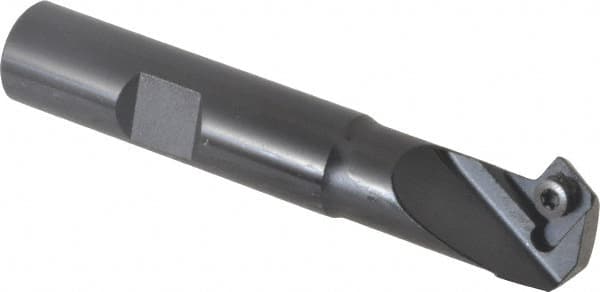

Kennametal - 30° Lead Angle, 0.787" Max Cut Diam, 0.46" Min Cut Diam, 6.6mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 1 Insert, SDEB 26152 Insert Style, 3" Overall Length, Straight Shank
Item #: 00691568
Brand: Kennametal
Model #: 1023675
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.4600 |
| Maximum Cutting Diameter (Decimal Inch) | 0.7870 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Lead Angle | 30 |
| Overall Length (Decimal Inch) | 3.0000 |
| Insert Style | SDEB 26152 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2600 |
| Maximum Depth of Cut (mm) | 6.60 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| Toolholder Style | KIPR |
| Number of Flutes | 1 |
| Head Length (Decimal Inch) | 1.2200 |
| Weldon Flat | Yes |
| Shank Length (mm) | 45.21 |
| Shank Length (Decimal Inch) | 1.7799 |
| Maximum RPM | 11000 |
