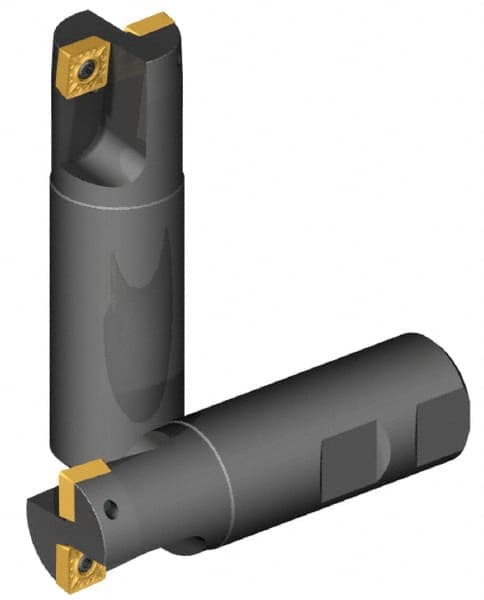

Kennametal - 1-1/4" Cut Diam, 6.57mm Max Depth of Cut, 1-1/4" Shank Diam, 102.36mm OAL, Indexable Square Shoulder End Mill - SPCT 3125.. Inserts, Weldon Shank, 0° Lead Angle
Item #: 00691857
Brand: Kennametal
Model #: 1229095
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 31.75 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (mm) | 102.36 |
| Overall Length/Projection (Decimal Inch) | 4.0300 |
| Lead Angle | 0 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 6.57 |
| Maximum Depth of Cut (Decimal Inch) | 0.2590 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | KISR |
| Number of Flutes | 3 |
| Head Length (mm) | 44.45 |
| Head Length (Decimal Inch) | 1.7500 |
| Weldon Flat | Yes |
| Insert Compatibility | SPCT 3125.. |
| Shank Length (Decimal Inch) | 2.2799 |
| Shank Length (mm) | 57.91 |
| Maximum RPM | 33200 |
| Coolant Hole Diameter (mm) | 9.53 |
| Coolant Hole Diameter (Inch) | 3/8 |
| Coolant Hole Diameter (Decimal Inch) | 0.3750 |
