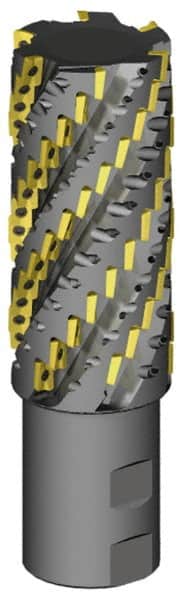

Kennametal - 2" Cut Diam, 6.12" Max Depth of Cut, 2" Shank Diam, 9.7" OAL, Indexable Square Shoulder Helical End Mill - ADKT 1545 Inserts, Weldon Shank
Item #: 00691964
Brand: Kennametal
Model #: 1508683
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Cutting Diameter (Inch) | 2 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 50.80 |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Overall Length/Projection (Decimal Inch) | 9.7000 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 6.1200 |
| Number of Cutter Inserts | 50 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | NGE-B |
| Number of Flutes | 4 |
| Head Length (Decimal Inch) | 6.4500 |
| Weldon Flat | Yes |
| Insert Compatibility | ADKT 1545 |
| Shank Length (Decimal Inch) | 3.2500 |
| Shank Length (mm) | 82.55 |
| Maximum RPM | 7100 |
