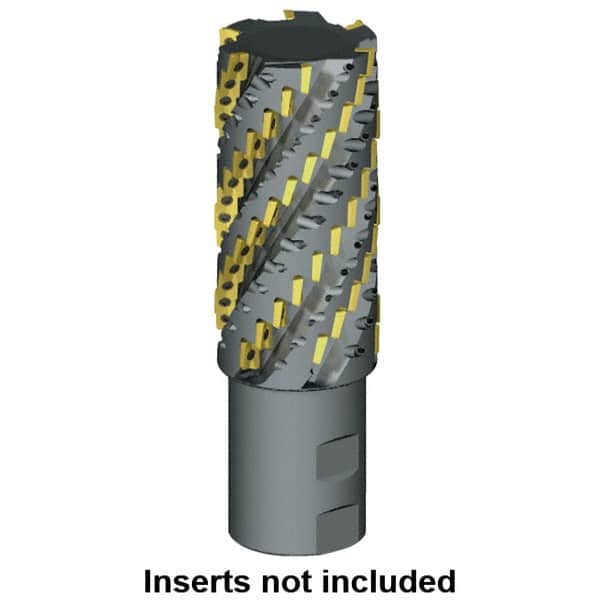

Kennametal - 1-1/2" Cut Diam, 3.37" Max Depth of Cut, 2" Shank Diam, 7-1/2" OAL, Indexable Square Shoulder Helical End Mill - ADCT 2328.., ADCT 1545.., ADKT 2328.., ADKT 1545.. Inserts, Weldon Shank
Item #: 00692111
Brand: Kennametal
Model #: 1583485
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 50.80 |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Overall Length/Projection (Decimal Inch) | 7.5000 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 3.3700 |
| Number of Cutter Inserts | 21 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | NGE-B |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 4.2500 |
| Weldon Flat | Yes |
| Insert Compatibility | ADCT 2328.., ADCT 1545.., ADKT 2328.., ADKT 1545.. |
| Shank Length (Decimal Inch) | 3.2500 |
| Shank Length (mm) | 82.55 |
| Maximum RPM | 8150 |
