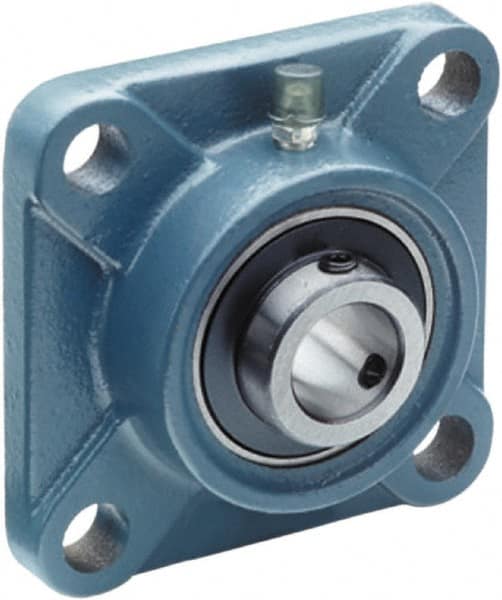

Tritan - 1-15/16" ID, 5.63" OAL x 2.15" OAH 4-Bolt Flange - 5,216 Lb Static Cap, 7,868 Lb Dyn Cap, 4.37" Btw Mnt Hole Ctrs, 0.87" Base-to-Ctr Ht, Cast Iron/Steel
Item #: 00794206
Brand: Tritan
Model #: UCF210-31
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 4-Bolt Flange |
| Inside Diameter (Decimal Inch) | 1.9375 |
| Inside Diameter (Inch) | 1-15/16 |
| Width (Decimal Inch) | 5.6300 |
| Overall Length (Decimal Inch) | 5.6300 |
| Overall Height (Decimal Inch) | 2.1500 |
| Static Load Capacity (Pounds) | 5216.00 |
| Dynamic Load Capacity (Pounds) | 7868 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 4.3700 |
| Material | Cast Iron/Steel |
| Distance Between Base And Center (Decimal Inch) | 0.8700 |
| Insert Material | 52100 Steel |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 1/2 |
| Metric Bolt Size | 14.0000 |
