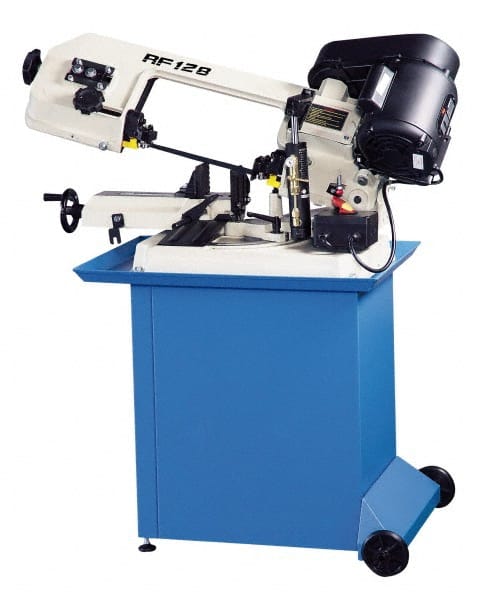

Enco - 5 x 6" Max Capacity, Manual Step Pulley Horizontal Bandsaw - 80, 120 & 200 SFPM Blade Speed, 110 Volts, 45 & 60°, 1/3 hp, 1 Phase
Item #: 00808881
Brand: Enco
Exact Tooling IR#: 04
Features and Benefits
Manual bandsaws are controlled by an operator. They manually load the material into the saw, measure lengths to cut and adjust stops.
Step pulleys are driven by a belt system that is manually changed to achieve a specific speed. These pulleys commonly feature 3 to 4 fixed speeds.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Machine Style | Manual |
| Drive Type | Step Pulley |
| Angle of Rotation | 45; 60 |
| Maximum Capacity (Rectangular) (Inch) | 5 x 6 |
| Maximum Capacity (Rounds) (Inch) | 5 |
| Phase | 1 |
| Voltage | 110 |
| Coolant System | No |
| Angular Cuts at 45 Degrees (mm) | 75 x 95 (Rectangular); 95 (Round) |
| Angular Cuts at 45 Degrees (Inch) | 2-15/16 x 3-3/4 (Rectangular); 3-3/4 (Round) |
| Blade Width (mm) | 12.70 |
| Blade Width (Decimal Inch) | 0.5000 |
| Angular Cuts at 60 Degrees (mm) | 44 (Round); 44 x 56 (Rectangular) |
| Angular Cuts at 60 Degrees (Inch) | 1-3/4 (Round); 1-3/4 x 2-3/16 (Rectangular) |
| Blade Speeds (SFPM) | 80 , 120 , 200 |
| Blade Length (Inch) | 64 |
| Blade Length (Decimal Inch) | 64.0000 |
| Blade Length (mm) | 1625.60 |
| Blade Thickness (mm) | 0.64 |
| Blade Thickness (Decimal Inch) | 0.0250 |
| Blade Speeds (SFPM) | 80 , 120 , 200 |
| Horsepower (HP) | 1/3 |
| Base Width (mm) | 381.00 |
| Base Width (Inch) | 15 |
| Base Depth (mm) | 990.60 |
| Base Depth (Inch) | 39 |
