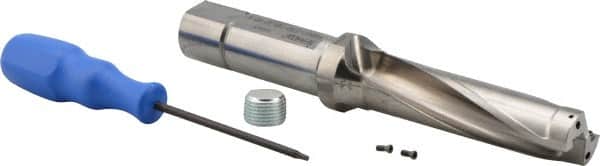

Iscar - 3-3/4" Max Drill Depth, 4xD, 0.937" Diam, Indexable Insert Drill - 1" Shank Diam, Whistle Notch Shank
Item #: 00908244
Brand: Iscar
Model #: 3201406
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (Decimal Inch) | 0.9370 |
| Maximum Drill Depth (Decimal Inch) | 3.7500 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Maximum Drill Diameter (Decimal Inch) | 1.0200 |
| Overall Length/Projection (Decimal Inch) | 7.6100 |
| Insert Compatibility | SOGX-AL; SOMX-DT; SOMX-GF; SOMX-HD |
| Body Length (Decimal Inch) | 4.6100 |
| Shank Length (Decimal Inch) | 3.0000 |
| Collar Diameter (Decimal Inch) | 1.2600 |
| Series | DR-TWIST |
