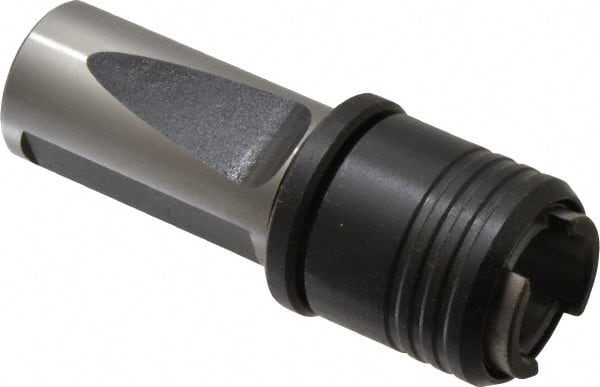

Bilz - 1" Straight Shank Diam Rigid Tapping Adapter - #0 to 9/16" Tap Capacity, 1.457" Projection, Size 1 Adapter, Quick Change, Through Coolant
Item #: 00920157
Brand: Bilz
Model #: 11700624
Exact Tooling IR#: 04
Features and Benefits
Rigid or solid tapping styles are used for general purpose CNC machining. The rigid tapping cycle synchronizes the machine and spindle rotation to match a specific thread pitch. It is used at higher speeds, but does not compensate for length during the taping cycle.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Rigid |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Minimum Tap Capacity (mm) | M3 |
| Minimum Tap Capacity (Inch) | #0 |
| Maximum Tap Capacity (Inch) | 9/16 |
| Maximum Tap Capacity (mm) | M12 |
| Projection (Decimal Inch) | 1.4570 |
| Quick Change | Yes |
| Minimum Collet Capacity (Inch) | #0 |
| Maximum Collet Capacity (Inch) | 9/16 |
| Adapter Size | 1 |
| Nose Diameter (Decimal Inch) | 1.2598 |
| Through Coolant | Yes |
