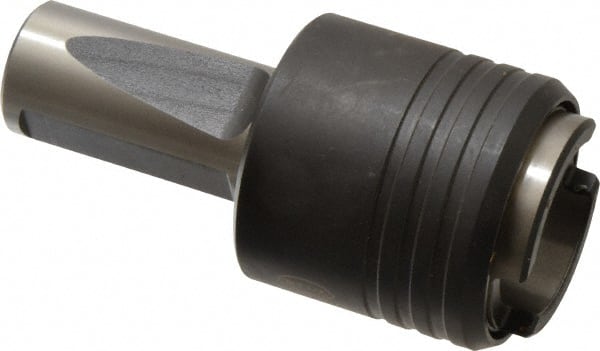

Bilz - 1" Straight Shank Diam Rigid Tapping Adapter - 1/4 to 7/8" Tap Capacity, 2.126" Projection, Size 2 Adapter, Quick Change, Through Coolant
Item #: 00920165
Brand: Bilz
Model #: 11700625
Exact Tooling IR#: 04
Features and Benefits
Rigid or solid tapping styles are used for general purpose CNC machining. The rigid tapping cycle synchronizes the machine and spindle rotation to match a specific thread pitch. It is used at higher speeds, but does not compensate for length during the taping cycle.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Rigid |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Minimum Tap Capacity (mm) | M8 |
| Minimum Tap Capacity (Inch) | 1/4 |
| Maximum Tap Capacity (Inch) | 7/8 |
| Maximum Tap Capacity (mm) | M20 |
| Projection (Decimal Inch) | 2.1260 |
| Quick Change | Yes |
| Minimum Collet Capacity (Inch) | 5/16 |
| Maximum Collet Capacity (Inch) | 7/8 |
| Adapter Size | 2 |
| Nose Diameter (Decimal Inch) | 1.9680 |
| Through Coolant | Yes |
