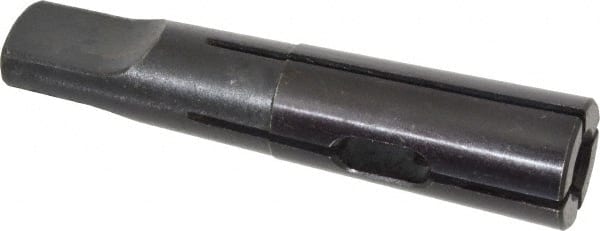

Scully Jones - Letter R, MT2 Outside Morse Taper, Drill Driver - 1/4 Inch Projection, 0.199 to 0.203 Inch Drill Tang Thickness
Item #: 00928648
Brand: Scully Jones
Model #: 09503
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Driver Type | Drill Driver |
| Outside Morse Taper Size | MT2 |
| Drill Size (Letter) | R |
| Drill Size (Decimal Inch) | 0.3390 |
| Projection (Decimal Inch) | 0.2500 |
| Drill Depth (Decimal Inch) | 1.1200 |
| Drill Tang Compatible | Yes |
| Maximum Drill Tang Thickness (Decimal Inch) | 0.2030 |
| Minimum Drill Tang Thickness (Decimal Inch) | 0.1990 |
| Drill Tang Length (Decimal Inch) | 0.3800 |
| Approval Listing/Regulations | ANSI/ASME B94.35 |
| Runout Maximum (Decimal Inch) | 0.0020 |
