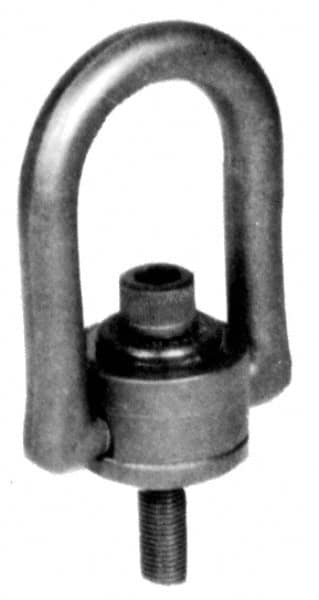

American Drill Bushing - 13,500 kg Rated Load Capacity , M48 x 5.0 Thread Size Center Pull Safety Engineered
Item #: 00950204
Brand: American Drill Bushing
Model #: 24054
Product Specifications
| Type | Center Pull Hoist Ring |
| Load Capacity (kg) | 13500 |
| Thread Size | M48 x 5.0 |
| Ring Height (mm) | 316.70 |
| Ring Width (mm) | 203.20 |
| Thread Length | 79.00 |
| Thread Length (Decimal Inch) | 79.00 |
| Thread Length (mm) | 79 |
| Mounting Surface Diameter (mm) | 123.70 |
| Radius (mm) | 57.20 |
| Radius (Decimal Inch) | 57.20 |
| Torque (Ft/Lb) | 1085.5 |
| Torque Newton/Meters | 1085.50 |
