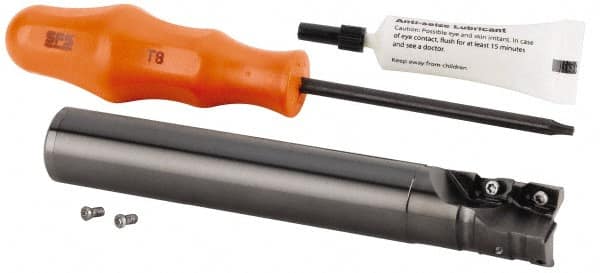

Kennametal - 1-1/4" Cut Diam, 35.99mm Max Depth of Cut, 1-1/4" Shank Diam, 148.79mm OAL, Indexable Square Shoulder Helical End Mill - GOMT 1604.., JOMT 1604.. Inserts, Cylindrical Shank, 0° Lead Angle, Through Coolant, Series KDMR
Item #: 00954008
Brand: Kennametal
Model #: 3578444
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 31.75 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (mm) | 148.79 |
| Overall Length/Projection (Decimal Inch) | 5.8580 |
| Lead Angle | 0 |
| Series | KDMR |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 35.99 |
| Maximum Depth of Cut (Decimal Inch) | 1.4170 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | KDMR |
| Number of Flutes | 2 |
| Head Length (mm) | 48.79 |
| Head Length (Decimal Inch) | 1.9210 |
| Weldon Flat | No |
| Insert Compatibility | GOMT 1604..; JOMT 1604.. |
| Shank Length (Decimal Inch) | 3.9370 |
| Shank Length (mm) | 100.00 |
