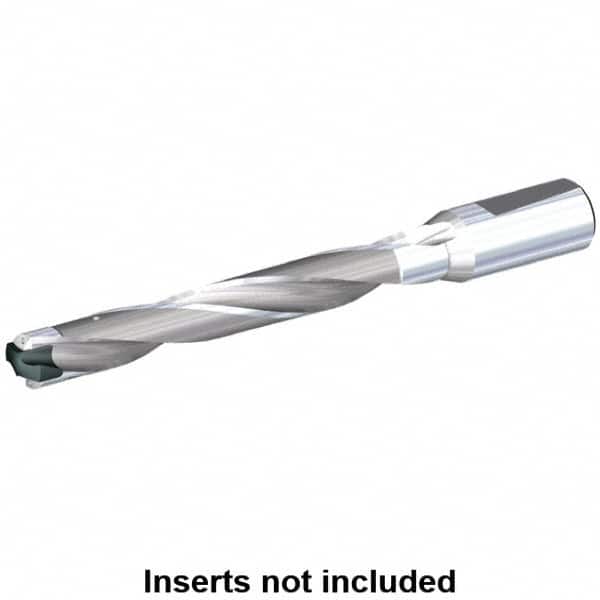

Kennametal - 20 to 20.5mm Diam, 7xD, 140mm Max Depth, 63/64" Shank Diam, 179mm Flute, 241mm OAL, Replaceable Tip Drill - KSEM2000 Insert, 3 Seat Size, Series KSEM
Item #: 00968792
Brand: Kennametal
Model #: 1279867
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 20.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7874 |
| Maximum Drill Diameter (mm) | 20.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.8071 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 140.00 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Inch) | 63/64 |
| Shank Diameter (Decimal Inch) | 0.9844 |
| Insert Style | KSEM2000 |
| Insert Seat Size | 3 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 3.20 |
| Flute Length (mm) | 179.00 |
| Flute Length (Decimal Inch) | 7.0472 |
| Overall Length (mm) | 241.00 |
| Shank Length (mm) | 56.00 |
