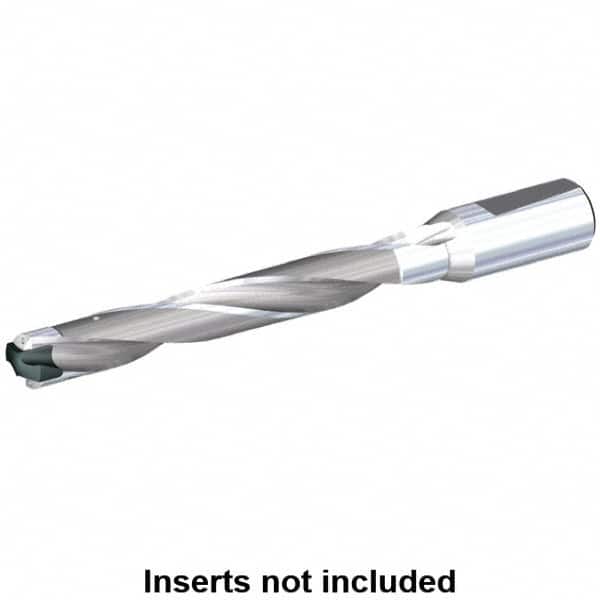

Kennametal - 22.5 to 23mm Diam, 7xD, 168mm Max Depth, 63/64" Shank Diam, 196mm Flute, 257mm OAL, Replaceable Tip Drill - KSEM2250 Insert, 4 Seat Size, Series KSEM
Item #: 00968842
Brand: Kennametal
Model #: 1279878
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 22.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.8858 |
| Maximum Drill Diameter (mm) | 23.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.9055 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 168.00 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Inch) | 63/64 |
| Shank Diameter (Decimal Inch) | 0.9844 |
| Insert Style | KSEM2250 |
| Insert Seat Size | 4 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 3.60 |
| Flute Length (mm) | 196.00 |
| Flute Length (Decimal Inch) | 7.7165 |
| Overall Length (mm) | 257.00 |
| Shank Length (mm) | 56.00 |
