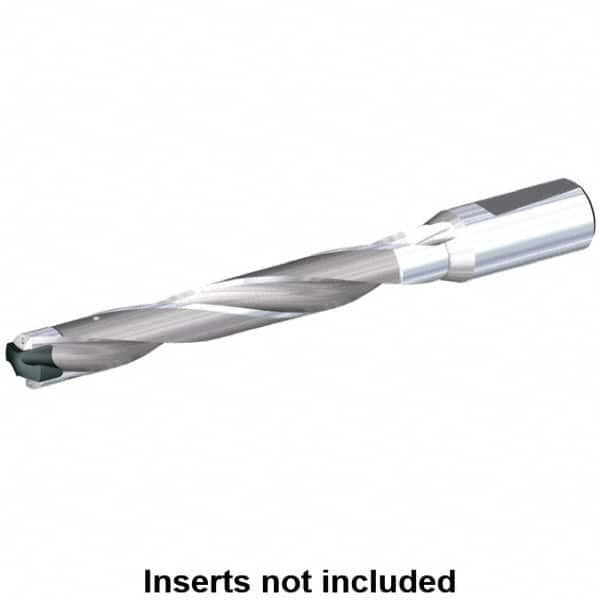

Kennametal - 27 to 27.5mm Diam, 7xD, 196mm Max Depth, 32mm Shank Diam, 229mm Flute, 294mm OAL, Replaceable Tip Drill - KSEM2700 Insert, 6 Seat Size, Series KSEM
Item #: 00968925
Brand: Kennametal
Model #: 1279895
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 27.00 |
| Minimum Drill Diameter (Decimal Inch) | 1.0630 |
| Maximum Drill Diameter (mm) | 27.50 |
| Maximum Drill Diameter (Decimal Inch) | 1.0827 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 196.00 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Style | KSEM2700 |
| Insert Seat Size | 6 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1575 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 4.20 |
| Flute Length (mm) | 229.00 |
| Flute Length (Decimal Inch) | 9.0157 |
| Overall Length (mm) | 294.00 |
| Shank Length (mm) | 60.00 |
