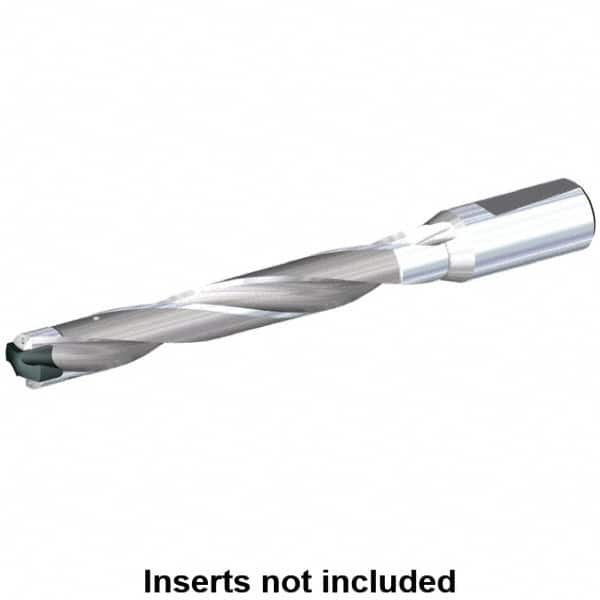

Kennametal - 28.5 to 29mm Diam, 7xD, 210mm Max Depth, 32mm Shank Diam, 245mm Flute, 310mm OAL, Replaceable Tip Drill - KSEM2850 Insert, 7 Seat Size, Series KSEM
Item #: 00968958
Brand: Kennametal
Model #: 1279903
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 28.50 |
| Minimum Drill Diameter (Decimal Inch) | 1.1220 |
| Maximum Drill Diameter (mm) | 29.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.1417 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 210.00 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Style | KSEM2850 |
| Insert Seat Size | 7 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 4.40 |
| Flute Length (mm) | 245.00 |
| Flute Length (Decimal Inch) | 9.6457 |
| Overall Length (mm) | 310.00 |
| Shank Length (mm) | 60.00 |
