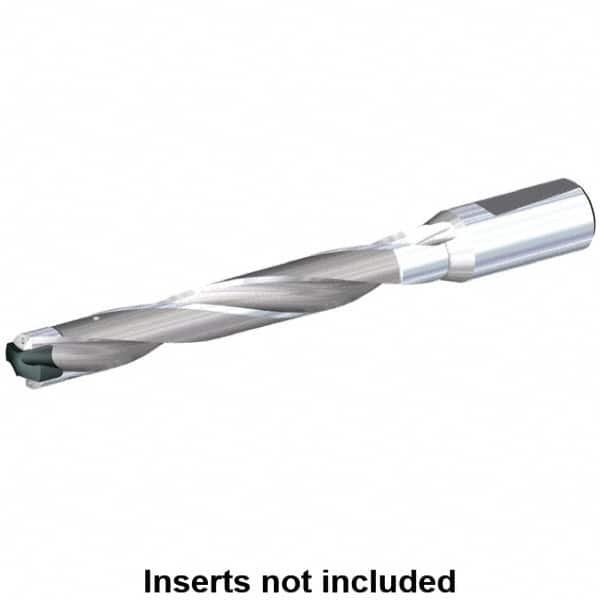

Kennametal - 31.5 to 32mm Diam, 7xD, 224mm Max Depth, 32mm Shank Diam, 263mm Flute, 328mm OAL, Replaceable Tip Drill - KSEM3150 Insert, 8 Seat Size, Series KSEM
Item #: 00969014
Brand: Kennametal
Model #: 1279914
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 31.50 |
| Minimum Drill Diameter (Decimal Inch) | 1.2402 |
| Maximum Drill Diameter (mm) | 32.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.2598 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 224.00 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Style | KSEM3150 |
| Insert Seat Size | 8 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 4.80 |
| Flute Length (mm) | 263.00 |
| Flute Length (Decimal Inch) | 10.3543 |
| Overall Length (mm) | 328.00 |
| Shank Length (mm) | 60.00 |
