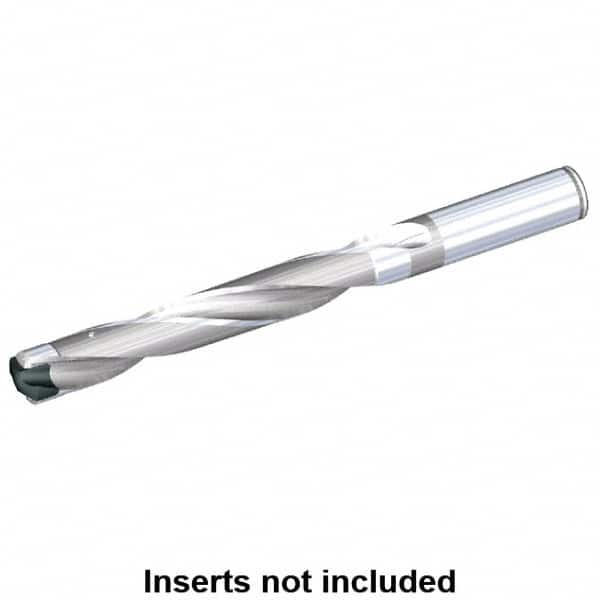

Kennametal - 31.75 to 32mm Diam, 7xD, 224mm Max Depth, 1-1/2" Shank Diam, 262.68mm Flute, 361.95mm OAL, Replaceable Tip Drill - KSEM1250 Insert, 8 Seat Size, Series KSEM
Item #: 00969089
Brand: Kennametal
Model #: 1519297
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 31.75 |
| Minimum Drill Diameter (Decimal Inch) | 1.2500 |
| Maximum Drill Diameter (mm) | 32.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.2598 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Decimal Inch) | 8.8200 |
| Maximum Drill Depth (mm) | 224.00 |
| Shank Diameter (mm) | 38.10 |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Style | KSEM1250 |
| Insert Seat Size | 8 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.1900 |
| Flute Length (mm) | 262.68 |
| Flute Length (Decimal Inch) | 10.3417 |
| Overall Length (mm) | 361.95 |
| Overall Length (Decimal Inch) | 14.2500 |
| Shank Length (Decimal Inch) | 3.7500 |
