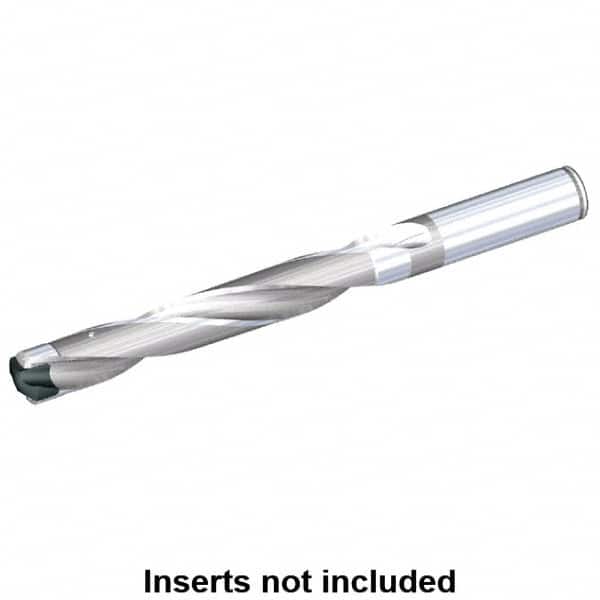

Kennametal - 12.7 to 13.2mm Diam, 7xD, 88.9mm Max Depth, 1/2" Shank Diam, 101.85mm Flute, 142.88mm OAL, Replaceable Tip Drill - KSEM0500 Insert, C Seat Size, Series KSEM
Item #: 00969196
Brand: Kennametal
Model #: 1798189
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 12.70 |
| Minimum Drill Diameter (Decimal Inch) | 0.5000 |
| Maximum Drill Diameter (mm) | 13.20 |
| Maximum Drill Diameter (Decimal Inch) | 0.5197 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Decimal Inch) | 3.5000 |
| Maximum Drill Depth (mm) | 88.90 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Style | KSEM0500 |
| Insert Seat Size | C |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 2.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.0984 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0800 |
| Flute Length (mm) | 101.85 |
| Flute Length (Decimal Inch) | 4.0098 |
| Overall Length (mm) | 142.88 |
| Overall Length (Decimal Inch) | 5.6252 |
| Shank Length (Decimal Inch) | 1.5000 |
