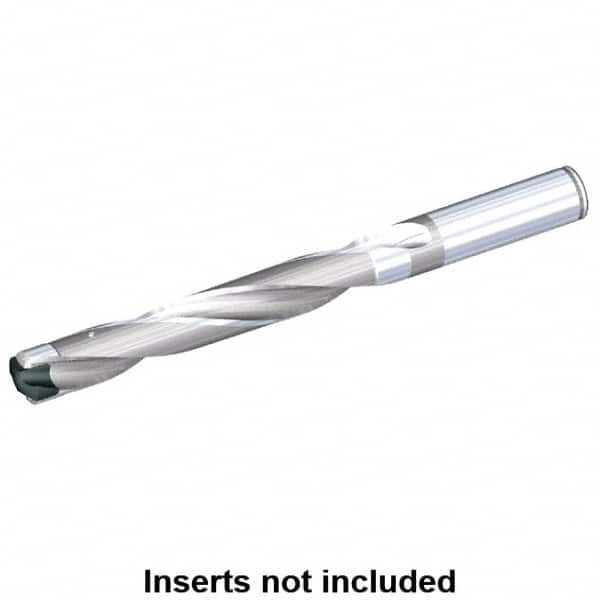

Kennametal - 13.1 to 13.5mm Diam, 7xD, 91.69mm Max Depth, 3/4" Shank Diam, 104.9mm Flute, 158.75mm OAL, Replaceable Tip Drill - KSEM0516 Insert, C Seat Size, Series KSEM
Item #: 00969220
Brand: Kennametal
Model #: 1798192
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 13.10 |
| Minimum Drill Diameter (Decimal Inch) | 0.5157 |
| Maximum Drill Diameter (mm) | 13.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.5315 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Decimal Inch) | 3.6098 |
| Maximum Drill Depth (mm) | 91.69 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | KSEM0516 |
| Insert Seat Size | C |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 0.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.0000 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0800 |
| Flute Length (mm) | 104.90 |
| Flute Length (Decimal Inch) | 4.1299 |
| Overall Length (mm) | 158.75 |
| Overall Length (Decimal Inch) | 6.2500 |
| Shank Length (Decimal Inch) | 2.0000 |
