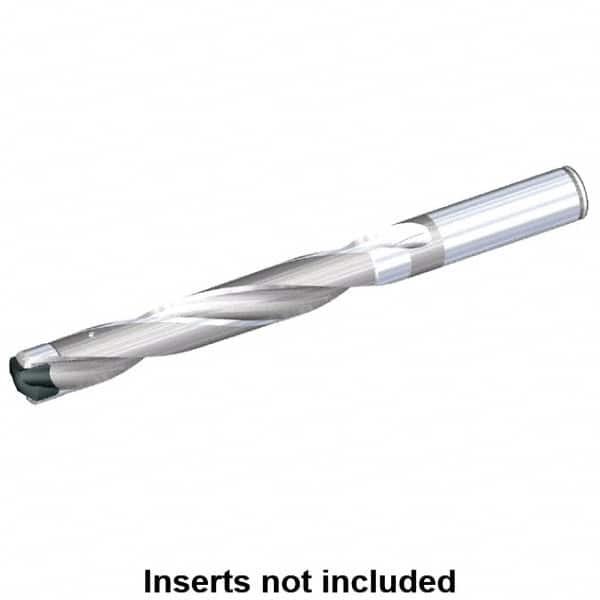

Kennametal - 13.89 to 14.39mm Diam, 7xD, 97.23mm Max Depth, 3/4" Shank Diam, 111.25mm Flute, 165.1mm OAL, Replaceable Tip Drill - KSEM0547 Insert, B Seat Size, Series KSEM
Item #: 00969246
Brand: Kennametal
Model #: 1798204
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 13.89 |
| Minimum Drill Diameter (Decimal Inch) | 0.5469 |
| Maximum Drill Diameter (mm) | 14.39 |
| Maximum Drill Diameter (Decimal Inch) | 0.5665 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Decimal Inch) | 3.8300 |
| Maximum Drill Depth (mm) | 97.23 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | KSEM0547 |
| Insert Seat Size | B |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 0.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.0000 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0900 |
| Flute Length (mm) | 111.25 |
| Flute Length (Decimal Inch) | 4.3799 |
| Overall Length (mm) | 165.10 |
| Overall Length (Decimal Inch) | 6.5000 |
| Shank Length (Decimal Inch) | 2.0000 |
