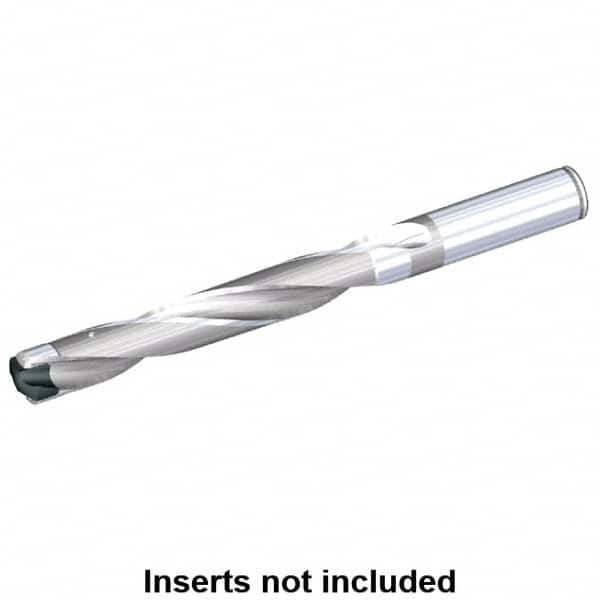

Kennametal - 15.48 to 15.87mm Diam, 7xD, 108.46mm Max Depth, 3/4" Shank Diam, 123.95mm Flute, 177.8mm OAL, Replaceable Tip Drill - KSEM0609 Insert, A Seat Size, Series KSEM
Item #: 00969287
Brand: Kennametal
Model #: 1798208
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 15.48 |
| Minimum Drill Diameter (Decimal Inch) | 0.6094 |
| Maximum Drill Diameter (mm) | 15.87 |
| Maximum Drill Diameter (Decimal Inch) | 0.6248 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Decimal Inch) | 4.2701 |
| Maximum Drill Depth (mm) | 108.46 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | KSEM0609 |
| Insert Seat Size | A |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 0.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.0000 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.1000 |
| Flute Length (mm) | 123.95 |
| Flute Length (Decimal Inch) | 4.8799 |
| Overall Length (mm) | 177.80 |
| Overall Length (Decimal Inch) | 7.0000 |
| Shank Length (Decimal Inch) | 2.0000 |
