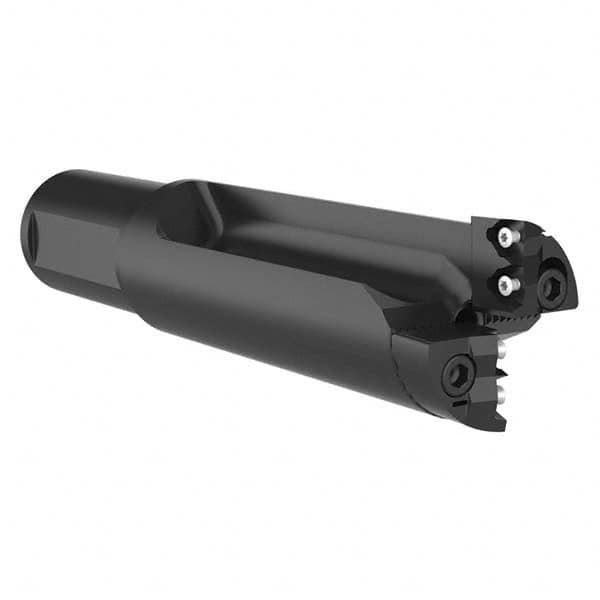

Allied Machine and Engineering - 112.4mm Max Drill Depth, 2.2xD, 47.6mm Diam, Indexable Insert Drill
Item #: 12328860
Brand: Allied Machine and Engineering
Model #: SP34X22-40M
| Product Specifications | |
|---|---|
| Drill Style | SP34 |
| Drill Diameter (mm) | 47.60 |
| Drill Diameter (Decimal Inch) | 1.8750 |
| Maximum Drill Depth (mm) | 112.40 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 40.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.2xD |
| Number of Drill Inserts | 4 |
| Maximum Drill Diameter (Decimal Inch) | 2.0000 |
| Maximum Drill Diameter (mm) | 50.80 |
| Overall Length/Projection (mm) | 204.80 |
| Insert Compatibility | OP-05T308 |
| Body Length (mm) | 134.80 |
| Shank Length (mm) | 70.00 |
| Series | Revolution Drill |
