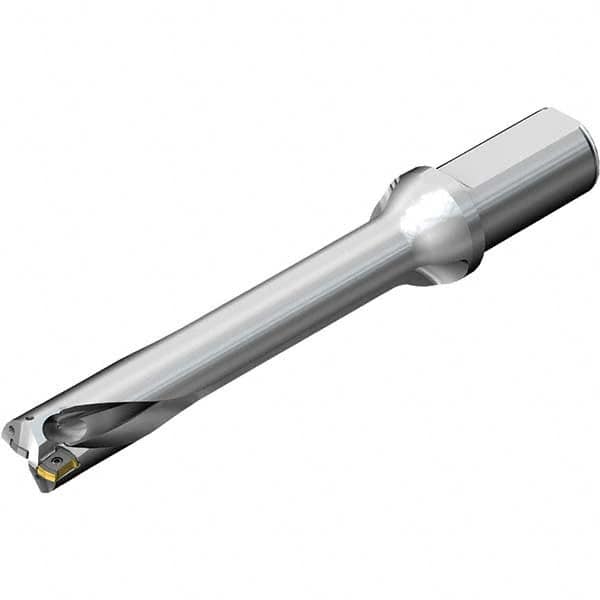

Sandvik Coromant - 9.372" Max Drill Depth, 6xD, 1.562" Diam, Indexable Insert Drill
Item #: 16776965
Brand: Sandvik Coromant
Model #: 7548954
| Product Specifications | |
|---|---|
| Drill Style | DS20..LXxx-06 |
| Drill Diameter (Decimal Inch) | 1.5620 |
| Maximum Drill Depth (Decimal Inch) | 9.3720 |
| Shank Type | Straight |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 6xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 13.4409 |
| Insert Compatibility | DS20-0508-C |
| Body Length (Decimal Inch) | 9.5260 |
| Series | CoroDrill DS20 |
