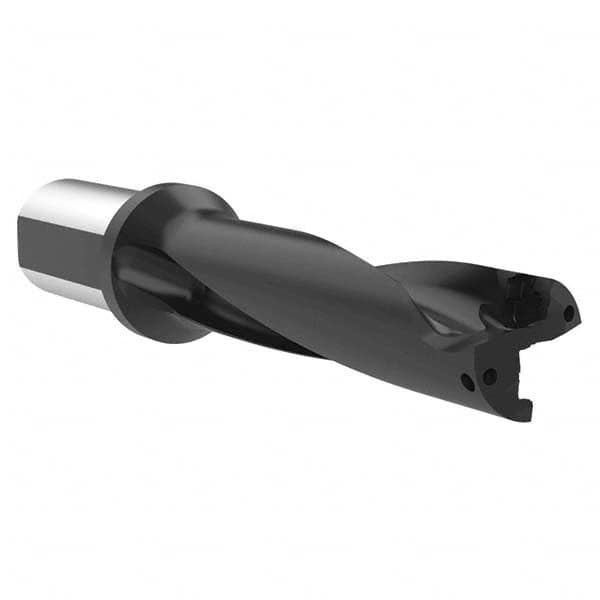

Allied Machine and Engineering - 152.4mm Max Drill Depth, 4xD, 38.1mm Diam, Indexable Insert Drill
Item #: 12328217
Brand: Allied Machine and Engineering
Model #: D4111500I-40FM
| Product Specifications | |
|---|---|
| Drill Style | D411 |
| Drill Diameter (mm) | 38.10 |
| Drill Diameter (Decimal Inch) | 1.5000 |
| Maximum Drill Depth (mm) | 152.40 |
| Shank Type | Flange |
| Shank Diameter (mm) | 40.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.5000 |
| Maximum Drill Diameter (mm) | 38.10 |
| Overall Length/Projection (mm) | 247.40 |
| Insert Compatibility | 4T-11T306 |
| Body Length (mm) | 178.40 |
| Shank Length (mm) | 69.00 |
| Collar Diameter (mm) | 54.00 |
| Series | 4Tex |
