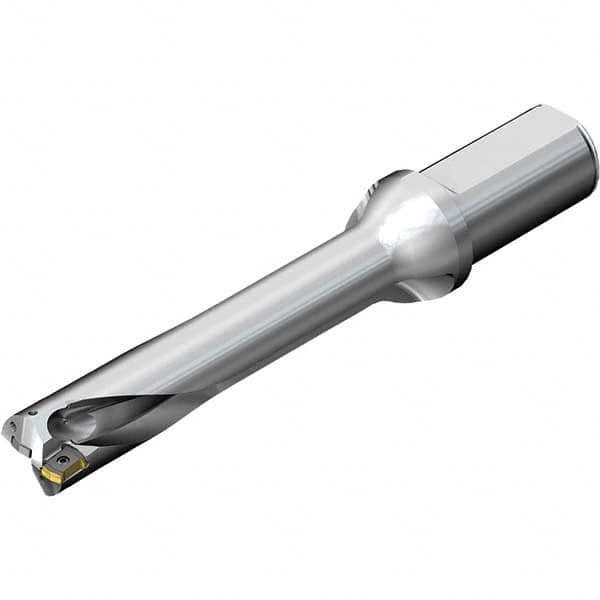

Sandvik Coromant - 5.31" Max Drill Depth, 5xD, 1.062" Diam, Indexable Insert Drill
Item #: 96517933
Brand: Sandvik Coromant
Model #: 7548869
| Product Specifications | |
|---|---|
| Drill Style | DS20..LXxx-05 |
| Drill Diameter (Decimal Inch) | 1.0620 |
| Maximum Drill Depth (Decimal Inch) | 5.3100 |
| Shank Type | Straight |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 8.7812 |
| Insert Compatibility | DS20-0306-C |
| Body Length (Decimal Inch) | 5.4360 |
| Series | CoroDrill DS20 |
