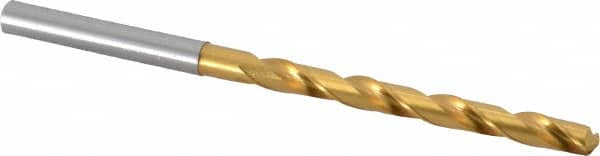

OSG - Letter A 130° Cobalt Jobber Drill
Item #: 09593724
Brand: OSG
Model #: 15234005
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Letter) | A |
| Drill Bit Size (Decimal Inch) | 0.2340 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 2-5/8 |
| Overall Length (Inch) | 4-7/16 |
| Point Type | Standard |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Spiral Type | Regular Spiral |
| Web Configuration | Tapered |
| Web Thinning | R-Thinned |
| Series/List | 1500 |
