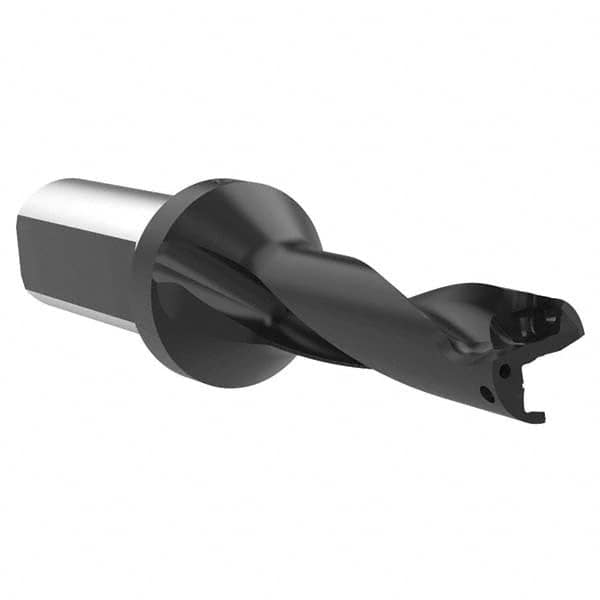

Allied Machine and Engineering - 42.82mm Max Drill Depth, 3xD, 14.29mm Diam, Indexable Insert Drill
Item #: 12326278
Brand: Allied Machine and Engineering
Model #: D3040562I-20FM
| Product Specifications | |
|---|---|
| Drill Style | D304 |
| Drill Diameter (mm) | 14.29 |
| Drill Diameter (Decimal Inch) | 0.5630 |
| Maximum Drill Depth (mm) | 42.82 |
| Shank Type | Flange |
| Shank Diameter (mm) | 20.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.5630 |
| Maximum Drill Diameter (mm) | 14.29 |
| Overall Length/Projection (mm) | 106.40 |
| Insert Compatibility | 4T-040203 |
| Body Length (mm) | 63.40 |
| Shank Length (mm) | 43.00 |
| Collar Diameter (mm) | 27.00 |
| Series | 4Tex |
