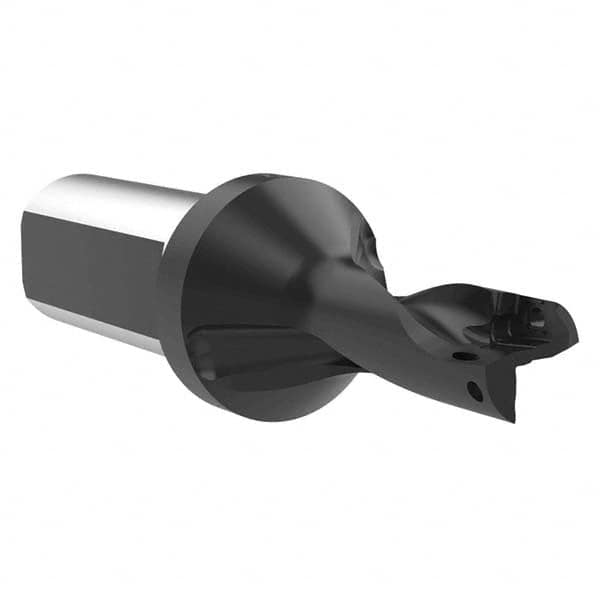

Allied Machine and Engineering - 25.4mm Max Drill Depth, 2xD, 12.7mm Diam, Indexable Insert Drill
Item #: 12572038
Brand: Allied Machine and Engineering
Model #: D2030500I-20FM
| Product Specifications | |
|---|---|
| Drill Style | D203 |
| Drill Diameter (mm) | 12.70 |
| Drill Diameter (Decimal Inch) | 0.5000 |
| Maximum Drill Depth (mm) | 25.40 |
| Shank Type | Flange |
| Shank Diameter (mm) | 20.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.5000 |
| Maximum Drill Diameter (mm) | 12.70 |
| Overall Length/Projection (mm) | 89.40 |
| Insert Compatibility (Outside or Peripheral) | 4T-030203P |
| Insert Compatibility | 4T-030203C; 4T-030203P |
| Body Length (mm) | 46.40 |
| Shank Length (mm) | 43.00 |
| Collar Diameter (mm) | 27.00 |
| Series | 4Tex |
