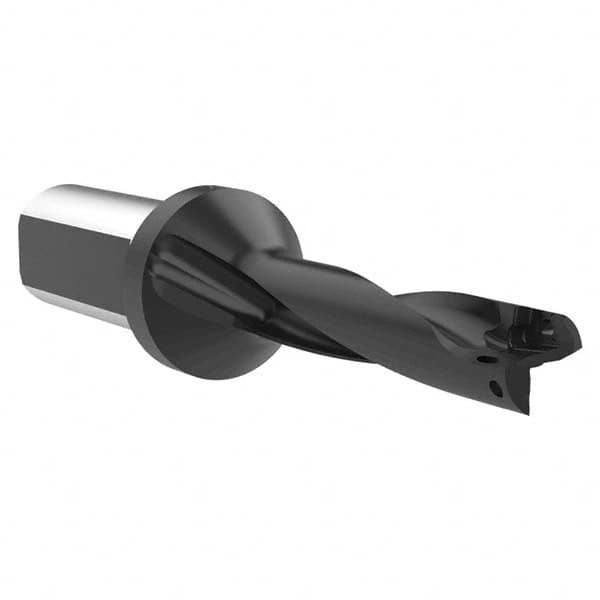

Allied Machine and Engineering - 1.969" Max Drill Depth, 4xD, 12.5mm Diam, Indexable Insert Drill
Item #: 12327052
Brand: Allied Machine and Engineering
Model #: D4031250M-075F
| Product Specifications | |
|---|---|
| Drill Style | D403 |
| Drill Diameter (mm) | 12.50 |
| Drill Diameter (Decimal Inch) | 0.4920 |
| Maximum Drill Depth (Decimal Inch) | 1.9690 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.4920 |
| Maximum Drill Diameter (mm) | 12.50 |
| Overall Length/Projection (Decimal Inch) | 4.5040 |
| Insert Compatibility (Outside or Peripheral) | 4T-030203P |
| Insert Compatibility | 4T-030203C; 4T-030203P |
| Body Length (Decimal Inch) | 2.8110 |
| Shank Length (Decimal Inch) | 1.6930 |
| Collar Diameter (Decimal Inch) | 1.0630 |
| Series | 4Tex |
